loading and unloading machine

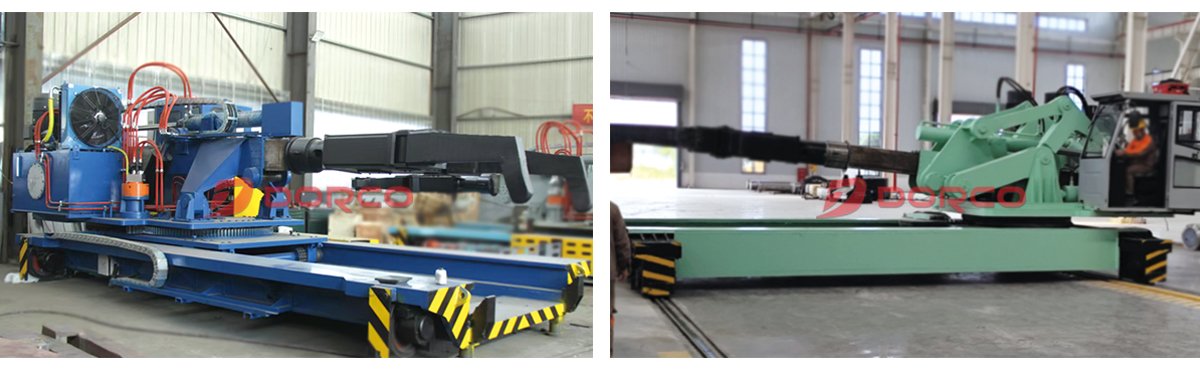

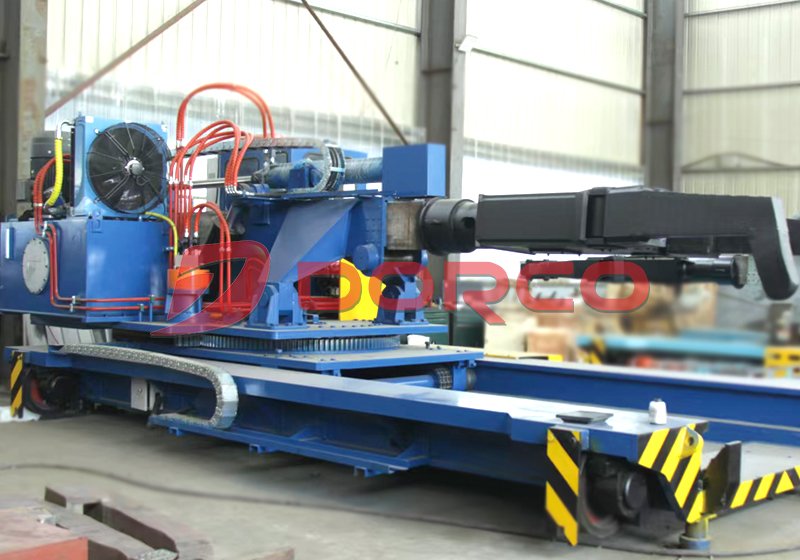

Rail machinery hybrid discharge machine

This series of loading and unloading machines can clamp workpieces from the ground and feed them into the heating furnace; At the same time, the heated workpiece can be taken out of the heating furnace and quickly sent to forging equipment such as forging hammers, presses, or ring rolling machines, and can assist in some simple operations, such as upper and lower frames, anvil seats, and material picking heads.

The loading and unloading machine has seven functions: large vehicle walking and small vehicle walking, small vehicle rotation, clamp rod tilting, clamp rod extension and contraction, clamp flipping, and clamp clamping.

Specification series: 1t~80t

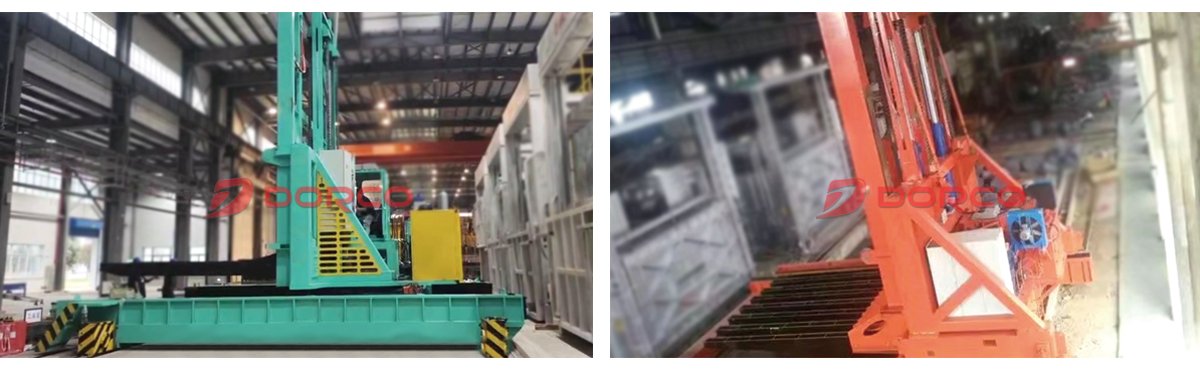

Rail type heat treatment loading and unloading machine

The heat treatment material handling machine is a specialized material handling equipment for heat treatment production lines. It has a fork shaped structure and is mainly used for the entry and exit of free forgings, cast steel parts, large ring parts, and quenching. The machine has simple, accurate, and reliable operation. The use of this machine can fully achieve mechanized operation of part heat treatment, effectively improving production efficiency.

Technical features: The heat treatment loading and unloading machine is a fully hydraulic transmission rail mounted rotary loading and unloading equipment, which can be operated according to the machine's actions: ① large vehicle movement, ② small vehicle movement, ③ fork lifting, ④ platform rotation (optional).

Specification series: 1t~100t

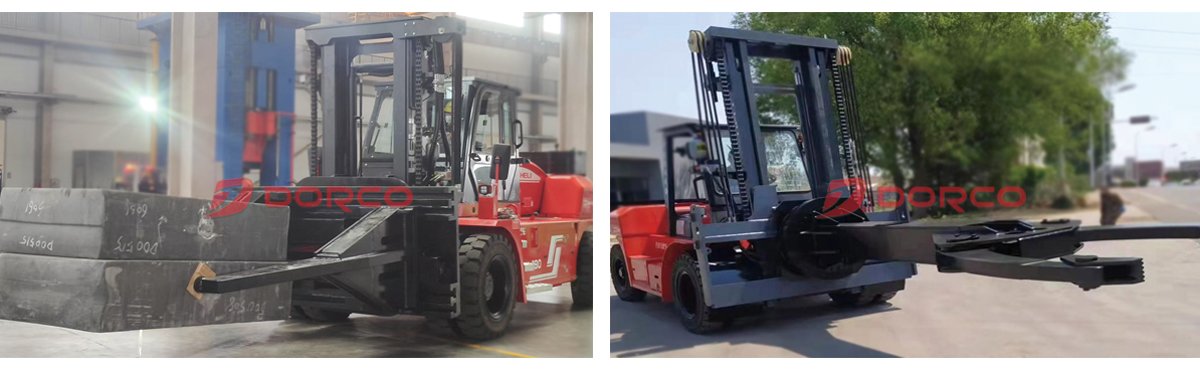

Forklift trackless loading and unloading machine

This series of loading and unloading machines is used for heating furnace loading/unloading and forging handling. It can clamp workpieces from the ground and feed them into the heating furnace, and quickly take out the heated workpieces from the heating furnace and send them to forging equipment such as forging hammers, presses, or vibrating ring presses. It can also assist in simple operations such as loading and unloading frames, anvil seats, and picking up material heads.

Technical features: Using forklifts as carriers, mature technology; Simple and intuitive structure, easy to maintain; The harsh environment of forging and other hot processing has a certain impact on the forklift body; Small turning radius; The modular design of the robotic arm makes maintenance/replacement easy.

Specification series: 1t~20t

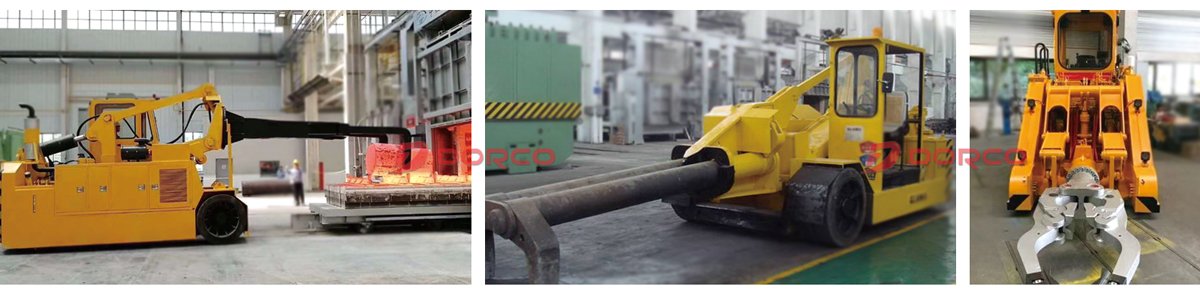

Self driven trackless forging loading and unloading machine/forging operation machine

This series of loading and unloading machines is used for heating furnace loading/unloading and forging handling. It can clamp workpieces from the ground and feed them into the heating furnace, and quickly take out the heated workpieces from the heating furnace and send them to forging equipment such as forging hammers, presses, or vibrating ring presses. It can also assist in simple operations such as loading and unloading frames, anvil seats, and picking up material heads.

Technical features: Introduction of advanced German technology, independent research and development, mature technology; Simple and easy to maintain structure; The harsh environment of forging and other hot processing has a certain impact on the forklift body; Small turning radius; The modular design of the robotic arm makes maintenance/replacement easy.

Specification series: 1t~30t
