Intelligent CNC electric screw press

Press machine is an important component equipment in the ring forging production line. This product has strong stability, accurate pressure control, and stable operation. It is capable of punching, compacting, and leveling blanks according to customer process requirements, providing pre formed blanks with size standards and internal compactness for ring rolling machines.

We focus on the actual performance of equipment and the compatibility with customer processes, and are willing to provide customized solutions and stable equipment performance to support the stable operation of customer production lines.

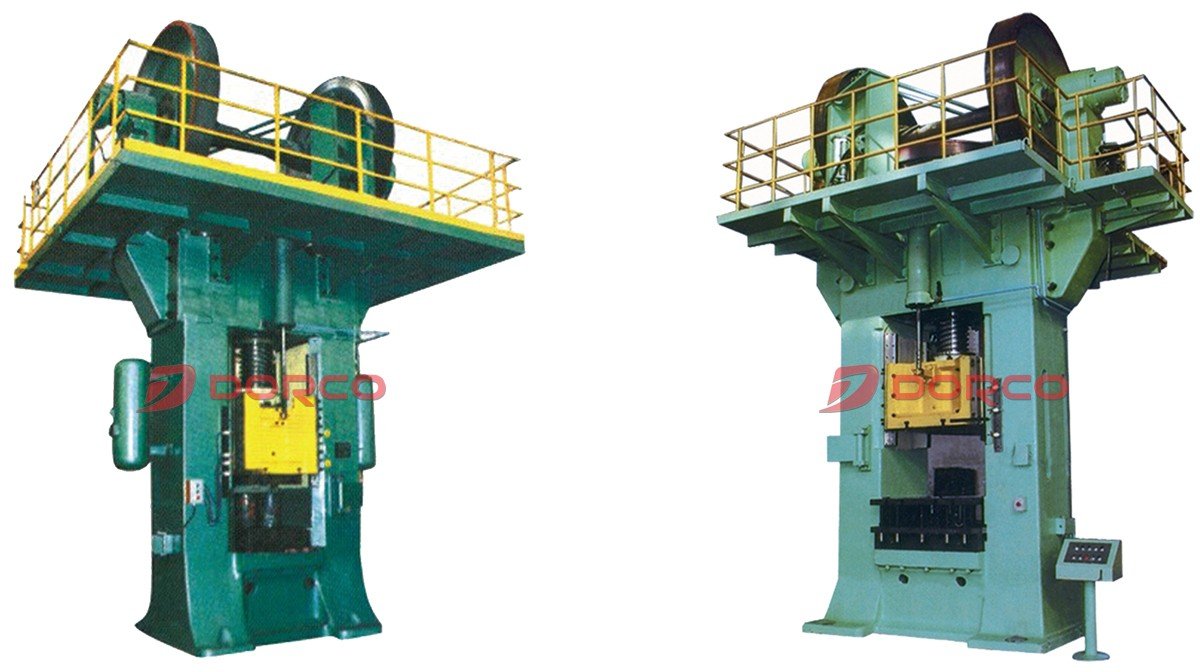

Double disk friction screw press

On the basis of retaining the typical structural characteristics of the double disc friction press, this machine also has the following technical features:

1. Adopting a combination of mechanical, electrical, and pneumatic control, the action is sensitive, the operation is stable, and the strike energy can be pre selected;

2. Using a translational brake device fixed on the platform to brake the flywheel, the braking torque is large, sensitive and reliable, and braking can be achieved at any position throughout the entire stroke.

3. Adopting a structure of integral frame and pull rod, the frame has good strength.

4. The control has been changed from a fork operated type to a two cylinder direct push type, with the control cylinder directly pushing the spindle to move left and right.

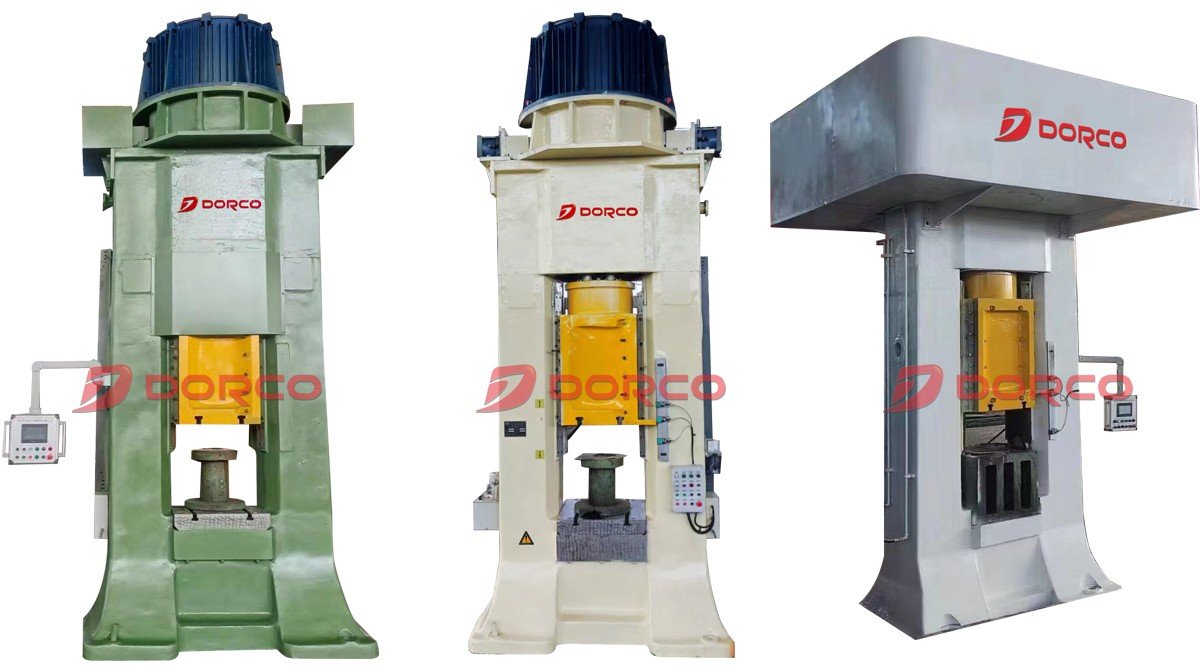

Direct drive electric screw press

The electric screw press belongs to the direct drive structure of the motor. The motor torque is directly transmitted to the screw without intermediate transmission components such as belts and gears, making the press structure simple;

2) No transmission energy loss, high efficiency;

3) The absence of easily worn transmission components reduces the maintenance workload of the equipment;

4) Without lubrication and maintenance in the transmission process, it has high reliability and high precision in repeated strikes;

5) No transmission link, low noise;

6) Direct drive is more suitable for short trips and multi frequency strikes;

7) The rotor becomes a part of the flywheel, and there will be no problem of power outage on the shaft;

8) The motor stator is installed independently, without bearings, and there is no radial or axial force, and there is no problem of seat cracking;

9) Solved the problem of gear transmission causing only a few fixed teeth to bear the impact force and easily causing tooth breakage;

10) No visible rotating parts, higher safety.

11) A switch reluctance speed regulating motor with low speed and high starting torque is adopted. Switched Reluctance Motor System is a new generation of stepless speed regulation system developed after DC speed regulation motor system and AC asynchronous motor variable frequency speed regulation system. It is a high-tech electromechanical integrated speed regulation product based on modern microelectronics technology, digital technology, electronic power technology, and modern control theory.

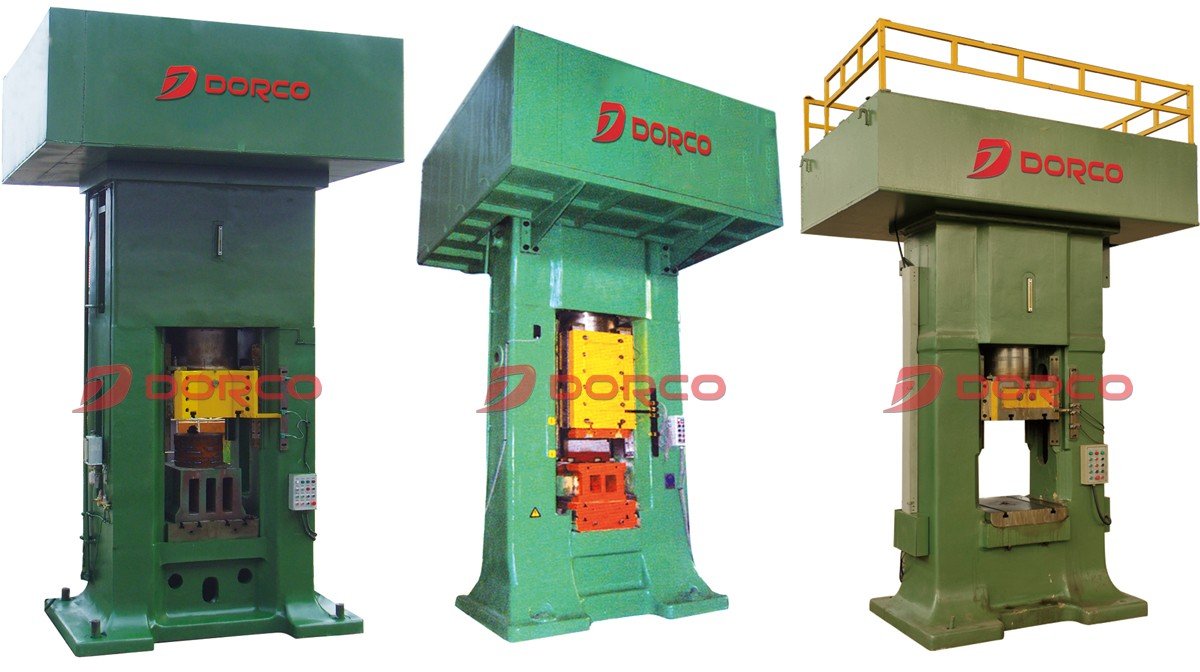

Intelligent CNC electric screw press

The electric screw press belongs to the motor mechanical transmission structure. Advanced switched reluctance speed control motor is adopted. The switched reluctance motor system consists of a controller and a switched reluctance motor. The controller is composed of embedded microprocessors, large-scale integrated circuits, electronic functional devices, and software, and has the functions of low starting current, high starting torque load, and no impact on the power grid.

This device has the characteristics of simple and compact structure, short transmission chain, fast striking speed, high efficiency, and easy operation and maintenance. According to the forging forming process, the impact force and energy can be adjusted at any time. The forging forming accuracy is high, the mold stress is small, and the service life is long.

Main technical performance:

Equipped with overload protection function;

It has the functions of pre selection and display of striking force and striking energy, and can select force and energy according to the forging process;

The effective energy under nominal force is ≥ 60% of the unsealed energy of motion;

The full stroke braking device ensures the safe operation and adjustment of the press;

The reliable pneumatic top material provides users with greater ejection reliability;

A reliable lubrication system ensures the effective operation of the press's motion pair;

Micro vibration and low noise reduce environmental pollution;

The short transmission chain brings convenience to operation and maintenance;

Reliable safety protection provides protection for both personnel and equipment;

The high geometric accuracy of the entire machine ensures the quality of the forgings
